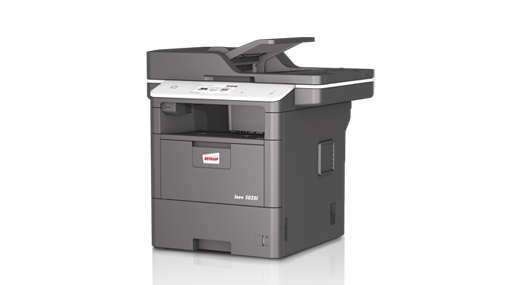

ineo 5020i


System Specifications

Panel size/resolution 4.85”
System memory (standard/max) 1,000 MB (standard/max)
Interface 10/100/1,000-Base-T Ethernet; USB 2.0; Wi-Fi 802.11 b/g/n
Network protocols TCP/IP (IPv4 / IPv6); LPD; IPP; SNMP; HTTP; HTTP(S)
Automatic Document Feeder Up to 80 originals; A6-A4; 64-90 g/m²; Dualscan ADF
Paper input capacity (standard/max) 570 sheets / 1,610 sheets (standard/max)
Paper tray input (standard) 1x 520 sheets; A6-A4; 60-120 g/m²
Paper tray input (optional) 1x 250 sheets; A5-A4; 60-120 g/m² (up to 2x)
1x 520 sheets; A5-A4; 60-120 g/m² (up to 2x)
Manual bypass 50 sheets; A6-A4; custom sizes; 60-200 g/m²
Automatic duplexing A4; 60-105 g/m²
Output capacity (standard) 250
Copy/print volume (monthly) Rec. 10,000 pages; Max. 150,000 pages
Toner lifetime Black up to 20,000 pages
Imaging unit lifetime 50,000
Power consumption 220-240 V / 50/60 Hz; Less than 805 W
System dimension (WxDxH) 495 x 427 x 518 mm (without options)
System weight Approx. 18.9 kg (without options)

Printer Specifications

Print resolution 1,200 x 1,200 dpi
Page description language PCL 6 (XL3.0); PostScript 3; XPS
Operating systems Windows 7 (32/64); Windows 8.1 (32/64); Windows 10 (32/64);
Windows Server 2008 (32/64); Windows Server 2008 R2;
Windows Server 2012; Windows Server 2012 R2;
Windows Server 2016; Windows Server 2019;
Macintosh OS X 10.10 or later; Linux
Printer fonts 85 PCL Latin; 66 PostScript 3 Emulation Latin
Mobile printing Mopria (Android);
Konica Minolta Print Service (Android);
Konica Minolta Mobile Print (iOS/Android/Windows 10 Mobile);
Google Cloud Print; WiFi Direct

Scanner Specifications

Scan speed (mono/colour) Up to 50/20 ipm in simplex
Up to 100/34 ipm in duplex
Scan resolution 1,200 x 1,200 dpi
Scan modes Scan-to-eMail (Scan-to-Me); Scan-to-FTP;
Scan-to-USB; TWAIN scan; WIA scan
File formats JPEG; TIFF; PDF; XPS
Optional: Searchable PDF
Scan destinations LDAP support

Copier Specifications

Imaging technology Laser
Toner technology Polymerized Toner
Copy/print speed A4 (mono) Up to 50 ppm
Autoduplex speed A4 (mono) Up to 24 ppm
1st copy out time A4 (mono) 9.5 sec.
Warm-up time Approx. 27 sec.
Copy resolution 600 x 600 dpi
Gradation 256 gradations
Multicopy 1-999
Original format A6-A4
Magnification 25-400% in 1% steps; Auto-zooming

Fax Specifications

Fax standard Super G3
Fax transmission Analogue; i-Fax
Fax compression MH; MR; MMR; JBIG
Fax modem Up to 33.6 Kbps
Fax destinations 299 destinations + 20 groups

System Features

Security SSL2; SSL3 and TLS1.0/1.1/1.2 network communication; IPsec support; IEEE 802.1x support; Secure print; Kerberos
Accounting Active Directory support
(user name + password + e-mail + smb folder)
Optional: ID card authentication (ID card reader)
Software Net Care Device Manager; Web Connection; Driver Packaging Utility
